Lecture 9-10: Parallel and Concurrent

목차

Learning Objectives

• Explain what concurrency and parallel computing are
• Explain how we can fake parallelism on a single executor
• Explain what atomicity is and how it is important for concurrent code
• Explain what critical sections are and different ways in which you can protect them against concurrent use
• Explain the potential problems with concurrent execution and how to prevent them
• Write safe concurrent programs for parallel execution
• Explain what futures and promises are, and how async/await notation makes their use convenient
• Explain how (software) transactional memory works





Concurrency (동시 실행)

Concurrency is the ability of different parts or units of a program to be executed out-of-order or in partial order, without affecting the outcome. This allows for parallel execution of the concurrent units.

→ Code blocks are independent of each other, even if they are executed in different order, the outcome has to be same.





Parallel Computing

Parallel computing is a type of computation in which many calculations or processes are carried out simulataneously.

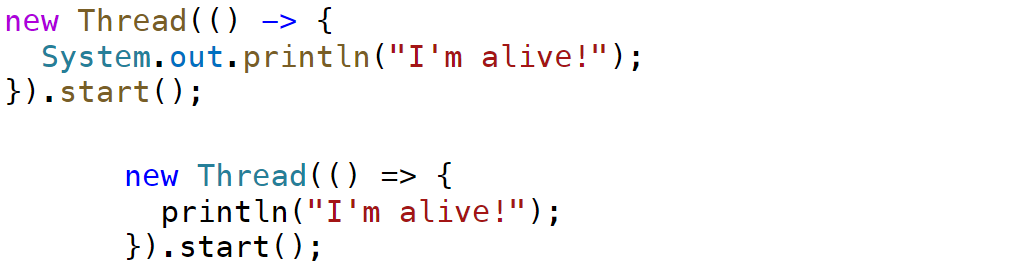

Concurrency - Thread

Independently schedulable entity

Allows you to run code concurrently



Does this mean that threads run in parallel? --> allows to do out-of-order execution but doesn't guarantee that they are being executed at the same time





Concurrency - Faking parallelism

Do a little bit of task, then switch to a different one (빨리 바꾸면 in millisec, looks like in parallel)

Rinse and repeat: looks like parallel but is not actually doing things in parallel





Concurrency - Preemption

Interrupt a task and switch to a different one

How to switch?  → interrupt mechanism in hardware



Cost of "Save the value I was at" (saving state)

Cost of "Where was I?" (restoring state)

→ Expensive





Concurrent Algorithms

Not everything can be done in parallel (depends on computer's hardware) 그래서 making it concurrent

Divide-and-conquer algorithms are usually easier to parallelize

Amdahl's law: number of processors does not increase the speedup all the time (saturation)





Concurrency Problems

Safety

Concurrent code is more prone to errors

- Does it work for all possible orderings of operations?





Race Condition

Outcome depends on the sequence or timing of individual instructions e.g. Queue 동시에 받기



Deadlock



Heisenbugs

The act of observing a system alters its state





Example:

class ParallelTest1 {
  public static void main(String[] args) throws Exception {
    Counter c = new Counter();
    Thread t1 = new Thread(() -> {
      for (int i = 0; i < 300; i++) {
        c.increment();
      }
    });
    Thread t2 = new Thread(() -> {
      for (int i = 0; i < 300; i++) {
        c.increment();
      }
    });
    t1.start();
    t2.start();

    // Wait for both to be done
    t1.join();
    t2.join();

    // Print the final result
    System.out.println(c.get());
  }
}

class Counter {
  private int x;

  // Single operations only to ensure atomicity
  public void increment() { x++; }
  public int get() { return x; }
}



I'm starting the first thread before the second thread so there is a bit of time so it can count 30 times (no problem), but for 300 or 3000, it does not give 600 or 6000.



class ParallelTest1 {
  public static void main(String[] args) throws Exception {
    Counter c = new Counter();
    Thread t1 = new Thread(() -> {
      for (int i = 0; i < 300; i++) {
        System.out.println("" + i);
        c.increment();
      }
    });
    Thread t2 = new Thread(() -> {
      for (int i = 0; i < 300; i++) {
        System.out.println("" + i);
        c.increment();
      }
    });
    t1.start();
    t2.start();

    // Wait for both to be done
    t1.join();
    t2.join();

    // Print the final result
    System.out.println(c.get());
  }
}

class Counter {
  private int x;

  // Single operations only to ensure atomicity
  public void increment() { x++; }
  public int get() { return x; }
}



For-loop에 print statement 추가하면 600이나 6000 출력. (Observing the system alters its state)



x++ =

x = x+1

1. Read x

2. Increment value on stack

3. Write into x

So 3 operations

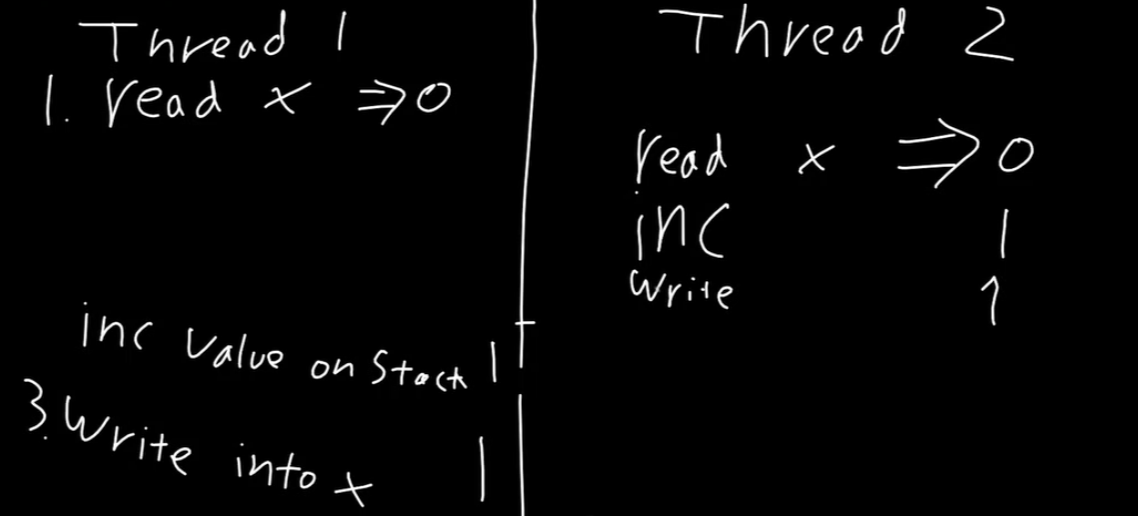

After reading x in step 1, in between step 1 and 2, the other thread can perform the operation (so we skipped one increment count). 그래서 600이나 6000 count 아님.



So we need to care about atomicity of actions (so the actions happen before and after, not during).





Concurrency Problems - Fairness

Many implementations are unfair

- Accidentally or intentional

- Unfair solutions are usually faster (less to do)

Starvation possible (one or multiple threads never execute)





Not Enough Chocolate

Goal:

- If there is no chocolate, someone buys it

- Only one person buys chocolate at a time

- We don't end up with multiple chocolates

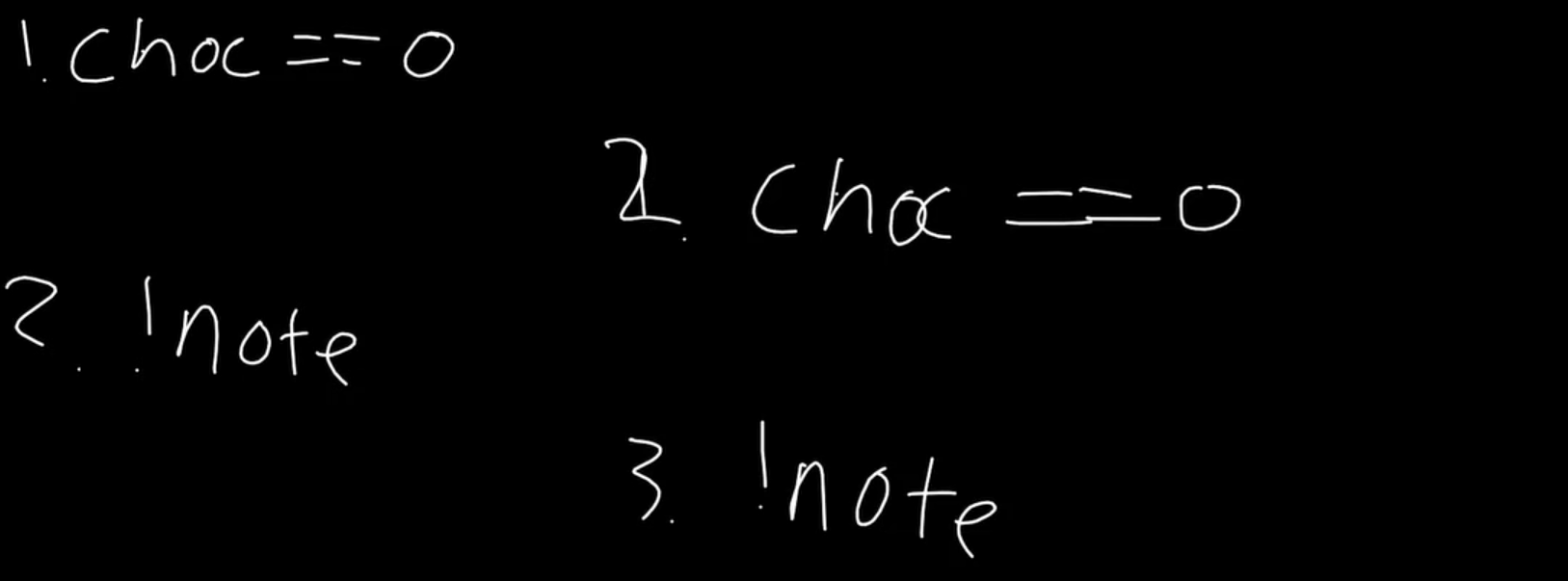

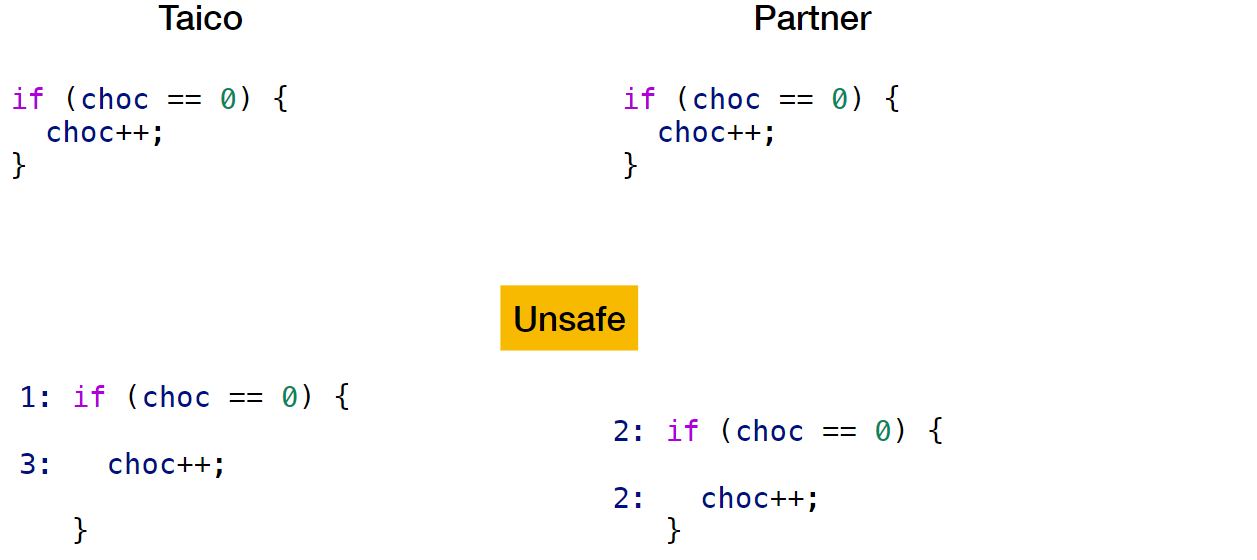

Solution 1:

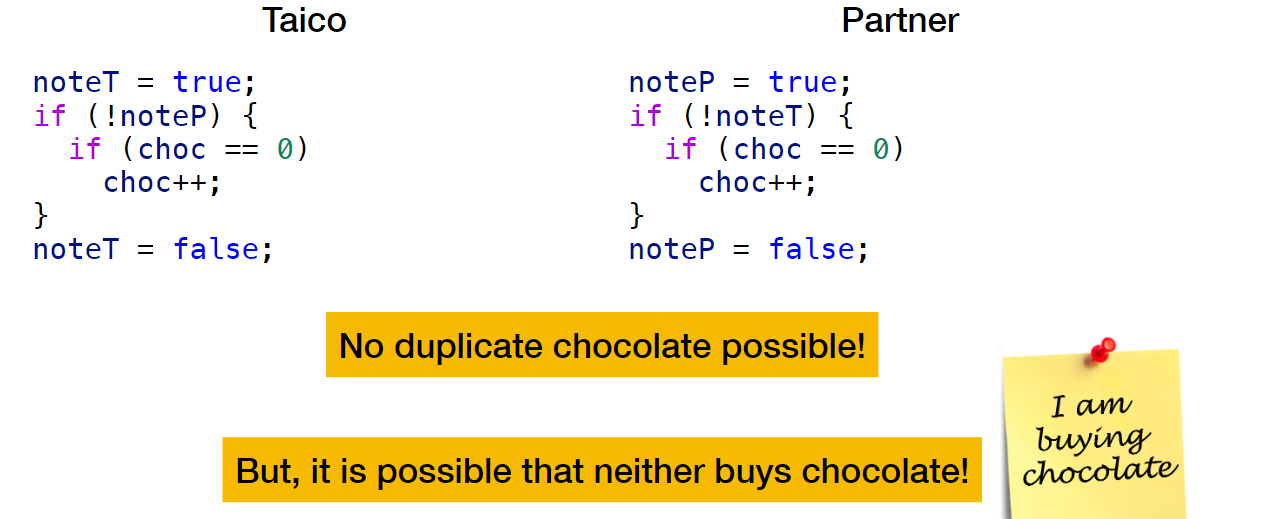

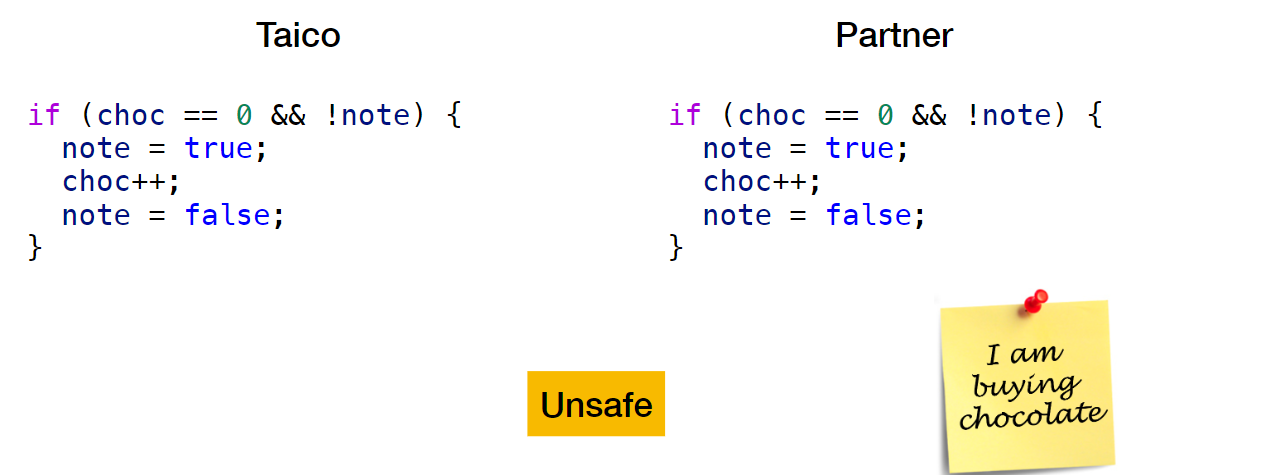

Solution 2: Communicate using notes

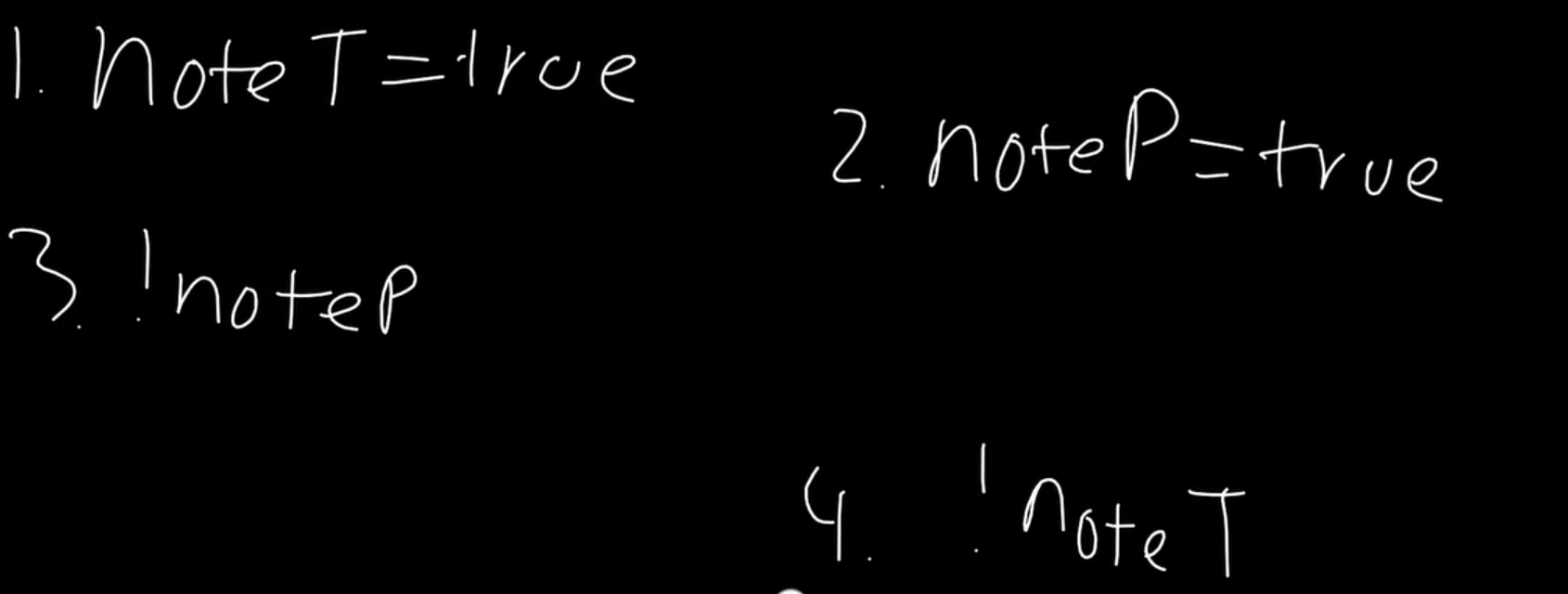

Solution 3





What we need is a way to prevent interleaved operations

- Critical section (only one code can enter the section, and no other code can)

- Do more things in one step: atomic read-modify-write operations





Concurrency Solutions

Critical Sections

Region that can be entered by only one thread at a time

Region that should be entered by only one thread at a time

Locks

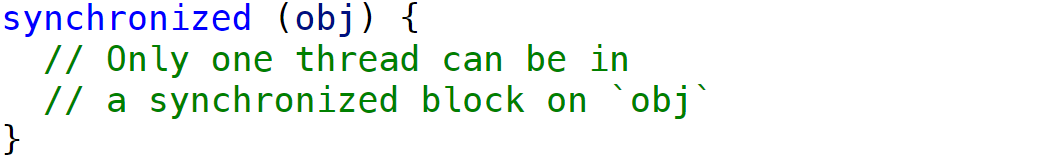

E.g. Critical section in Java with Synchronized

Synchronized keyword:

- Allows only one thread to enter that method/block

- Guarded on a particular object



class SynchronizedExample1 {
  public static void main(String[] args) throws Exception {
    Object obj = new Object();
    new Thread(() -> doStuff(obj), "T1").start();
    new Thread(() -> doStuff(obj), "T2").start();
    // Is T1 always first?
  }

  public static void doStuff(Object obj) {
    System.out.println("Thread " + Thread.currentThread().getName() + " before critical section");
    synchronized (obj) {
      System.out.println("Thread " + Thread.currentThread().getName() + " entered critical section");

      Util.doLongCalculation(10000);

      System.out.println("Thread " + Thread.currentThread().getName() + " leaving critical section");
    }
    System.out.println("Thread " + Thread.currentThread().getName() + " left critical section");
  }
}



이렇게 하면:

Thread T1 before critical section

Thread T1 entered critical section

Thread T2 before critical section

Thread T1 leaving critical section

Thread T1 left critical section

Thread T2 entered critical section



마찬가지로 Counter의 increment함수도 synchroinzed로 바꾸면:

Return 6000 because only one thread can increment at the same time





Example: Critical Section in Java using Locks

Locks class

Instead of synchronized, you can also use locks



import java.util.concurrent.locks.Lock;
import java.util.concurrent.locks.ReentrantLock;

class LocksExample1 {
  public static void main(String[] args) {
    MyObject m = new MyObject();
    new Thread(() -> m.doStuff(), "T1").start();
    new Thread(() -> m.doOtherStuff(), "T2").start();
  }
}

class MyObject {
  private Lock lock = new ReentrantLock();

  public void doStuff() {
    System.out.println("Thread " + Thread.currentThread().getName() + " in doStuff, before lock");
    lock.lock();
    System.out.println("Thread " + Thread.currentThread().getName() + " in doStuff, after lock");

    Util.doLongCalculation(10000);

    System.out.println("Thread " + Thread.currentThread().getName() + " in doStuff, before unlock");
    lock.unlock();
    System.out.println("Thread " + Thread.currentThread().getName() + " in doStuff, after unlock");
  }

  public void doOtherStuff() {
    System.out.println("Thread " + Thread.currentThread().getName() + " in doOtherStuff, before lock");
    lock.lock();
    System.out.println("Thread " + Thread.currentThread().getName() + " in doOtherStuff, after lock");

    Util.doLongCalculation(10000);

    System.out.println("Thread " + Thread.currentThread().getName() + " in doOtherStuff, before unlock");
    lock.unlock();
    System.out.println("Thread " + Thread.currentThread().getName() + " in doOtherStuff, after unlock");
  }
}



Thread T1 in doStuff, before lock

Thread T1 in doStuff, after lock

Thread T2 in doOtherStuff, before lock

Thread T1 in doStuff, before unlock

Thread T1 in doStuff, after unlock

Thread T2 in doOtherStuff, after lock

...



Nothing is safe so T2 may occur first





Issues of locking

Performance

Fairness:

- Thread who gets to go next is random

- Fair lock is possible, but often slower

Deadlocks





public class Deadlock {
  private static Lock lockA = new ReentrantLock();
  private static Lock lockB = new ReentrantLock();
  private static int balanceA = 1_000_000;
  private static int balanceB = 1_000_000;

  /**
   * Showcases race condition for parallel non-atomic read/write of balances.
   * Using locks showcases a deadlock.
   * Show how print frequency affects how long it takes until deadlock.
   * Show how order of which lock is locked first affects whether deadlock occurs or not.
   */
  public static void main(String[] args) throws Exception {
    // Thread to transfer 100,000 euro from A to B, 1 euro at a time.
    Thread aToB = new Thread(() -> {
      for (int i = 0; i < 100_000; i++) {
        transferAtoB_noLock(1);
        // transferAtoB_withLock(1);
        // if (i % 10 == 0) System.out.println("Transferred " + i + " from A to B");
      }
    });

    // Thread to transfer 100,000 euro from B to A, 1 euro at a time.
    Thread bToA = new Thread(() -> {
      for (int i = 0; i < 100_000; i++) {
        transferBtoA_noLock(1);
        // transferBtoA_withLock(1);
        // if (i % 10 == 0) System.out.println("Transferred " + i + " from B to A");
      }
    });

    // Start transferring money
    aToB.start();
    bToA.start();

    // Wait for both to finish
    aToB.join();
    bToA.join();

    // Report how much money each has.
    reportMoney();
  }

  public static void reportMoney() {
    System.out.println("Balance A: " + balanceA);
    System.out.println("Balance B: " + balanceB);
  }

  /**
   * Transfer the given amount of money from A to B, without locking.
   */
  public static void transferAtoB_noLock(int amount) {
    balanceA = balanceA - amount;
    balanceB = balanceB + amount;
  }

  /**
   * Transfer the given amount of money from B to A, without locking.
   */
  public static void transferBtoA_noLock(int amount) {
    balanceB = balanceB - amount;
    balanceA = balanceA + amount;
  }

  /**
   * Transfer the given amount of money from A to B.
   */
  public static void transferAtoB_withLock(int amount) {
    lockA.lock();
    try {
      lockB.lock();
      try {
        balanceA = balanceA - amount;
        balanceB = balanceB + amount;
      } finally {
        lockB.unlock();
      }
      // Do stuff
    } finally {
      lockA.unlock();
    }
  }



  /**
   * Transfer the given amount of money from A to B.
   */
  public static void transferBtoA_withLock(int amount) {
    lockB.lock();
    try {
      lockA.lock();
      try {
        balanceB = balanceB - amount;
        balanceA = balanceA + amount;
      } finally {
        lockA.unlock();
      }
    } finally {
      lockB.unlock();
    }
  }


}



Bank

Unlock 쓰면 100000 아님

Lock 썼는데 Deadlock



A first locks A then B, and B first locks B then A.

A lock, B lock, try to lock B -> waits, try to lock A -> waits so they are waiting forever



if we lock in the same order, no interleaving problems







Atomicity

All or nothing

To implement "All or nothing" operations: Hardware support needed (we don't do stuff interleaved)





Atomic Read-Modify-Write Operations

Explicit CPU support

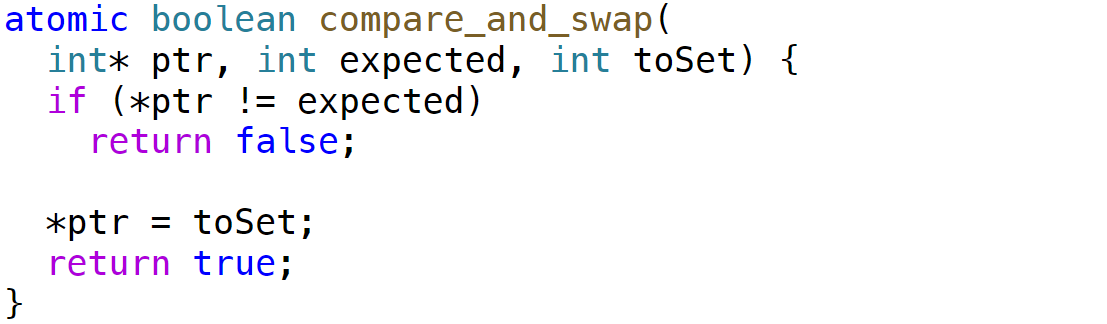

Compare-and-Swap (CAS)

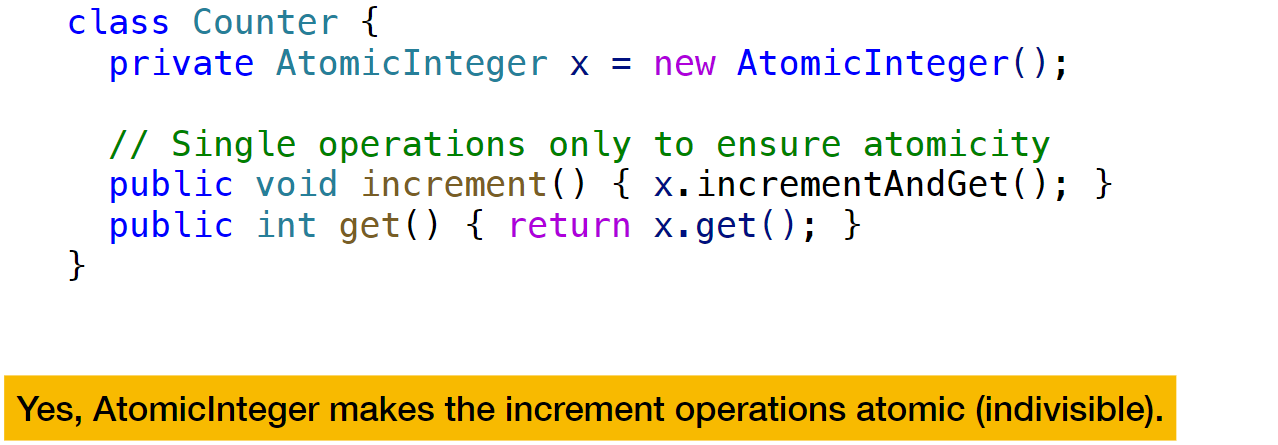

Example: Java AtomicInteger

How is AtomicInteger implemented?

General approach:

- Use CAS in a while loop until successful

- Very short window for concurrent issues, so usually succeeds first try

Lockless way to do a concurrent counter





How to make your life easier?

Do lockless if possible

If lock necessary, lock for as short as possible

Amound and frequency of concurrent access influences best solution, check what your scenario is

Don't reinvent the wheel, use existing solutions suited to your scenario

Don't use side effects

Use pure functions wherever possible





AtomicIntever vs Locks

AtomicInteger is an integer variable that can be concurrently used

AtomicInteger is more specialized

AtomicInteger is more performant for its usage

You can create locks with an atomic integer (or boolean, long, float, etc)

You can create (less performant) atomic integers with locks

AtomicInteger knows "lock time" is generally short

Locks know nothing about how long the "lock time" will be



AtomicInteger: is the value that we expected it to be? If so, update. If not, try again.





Concurrency Solutions have Problems

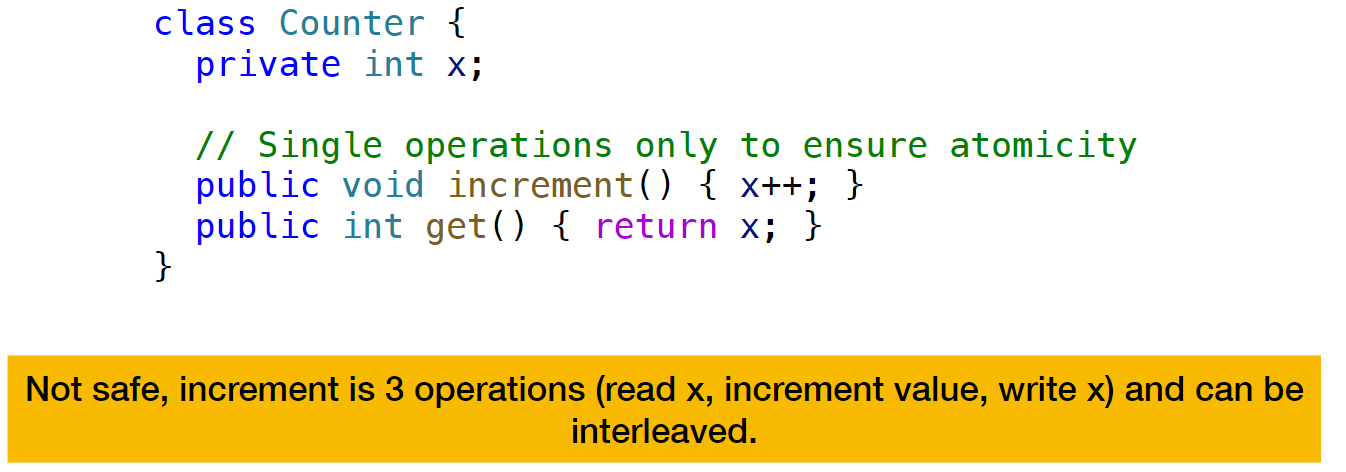

Example 1:





Example 2:





Example 3:

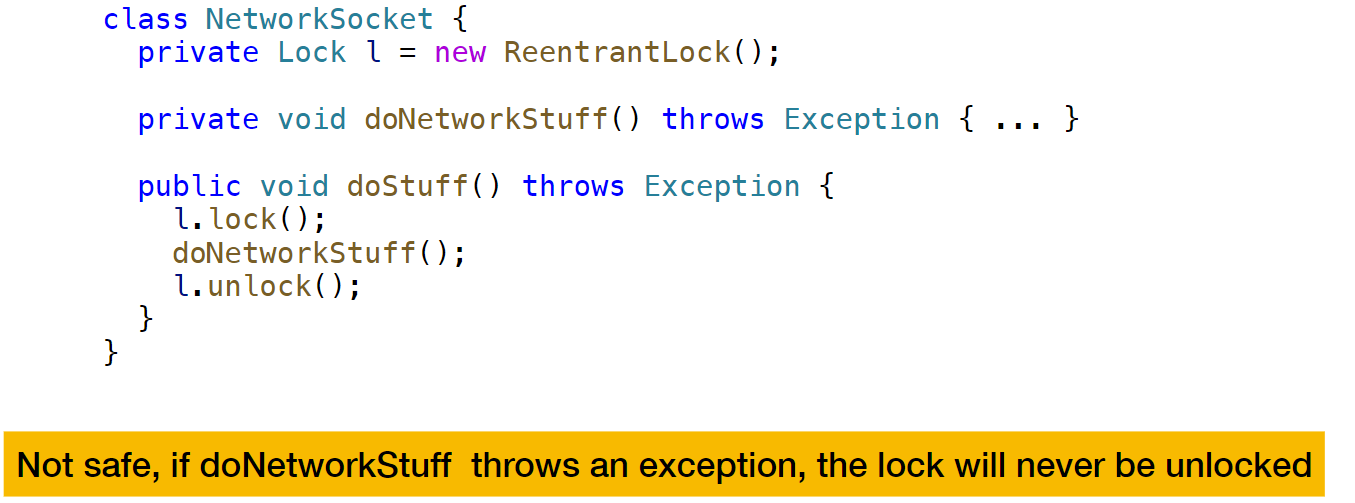

Since we never catch them, the lock will never be unlocked.

→ List can also throw exceptions.

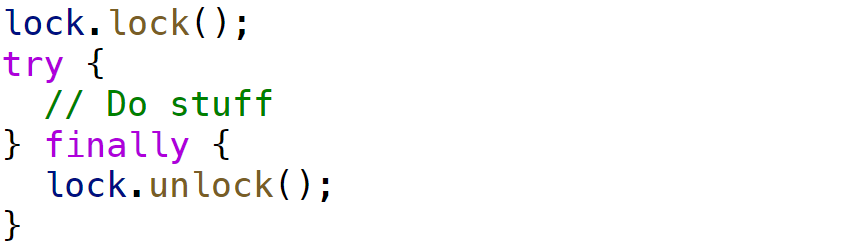

To fix it: Try and catch, Try and finally block (finally block: whatever it happens, unlock the lock) → safe for concurrent use

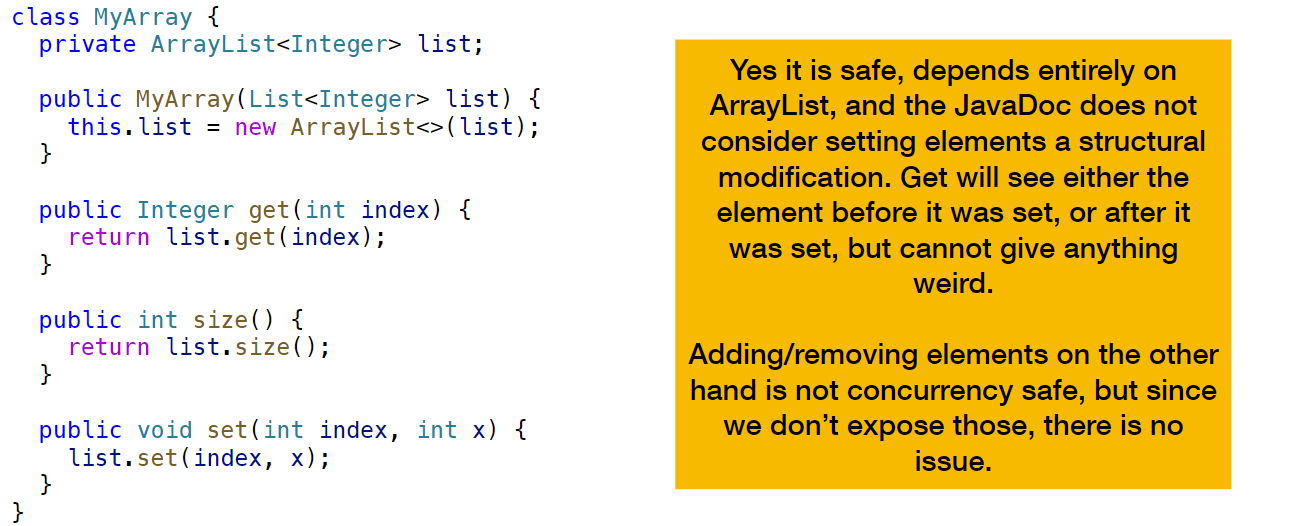

Example 4:



Concurrent safe because we don't do any structural modification of the ArrayList, such as adding or removing elements.

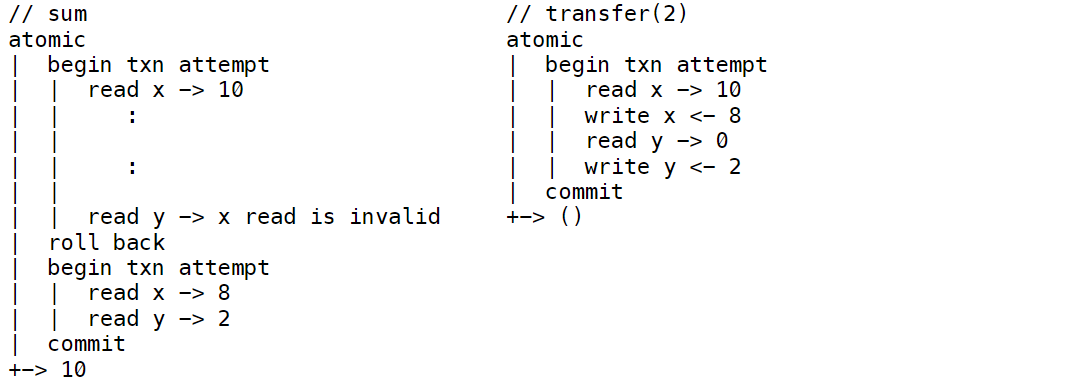

Software Transactional Memory

Database Transactions: Many reading

ACID





What is the problem?

Concurrently mutating causes all of our issues

Idea: Restrict writes (and reads) of variables that are used concurrently

Rust: only 1 thread (1 owner) can have a writable view of variable (ownership), and if there is a writable view, no others can read

STM: Force read/write of transactional variables to be in transactions





Example:



import scala.concurrent.stm._

object STMExample1 {
  def main(args: Array[String]) = {
    // In one thread, transfer money from x to y (after a delay of 0.5 sec)
    new Thread(() => {
      Thread.sleep(500)
      transfer(2)
    }).start()

    // In another thread, read x and y (with a delay of 1 sec between them)
    new Thread(() => {
      sum()
    }).start()

    // Wait until both have finished
    Thread.sleep(3000)

    println("Money: x=" + x.single() + ", y=" + y.single())
  }

  val (x, y) = (Ref(10), Ref(0))

  def sum() = {
    println("Starting sum")
    atomic { implicit transaction =>
      println("Reading x")
      val a = x()
      Thread.sleep(1000)
      println("Reading y")
      val b = y()
      a + b
    }
  }

  def transfer(n: Int) = {
    println("Transferring " + n + " from x to y")
    atomic { implicit transaction =>
      x -= n
      y += n
    }
    println("Finished transferring money!")
  }
}



delay:

Start by not doing anything

Sum starts; Read x and wait

Then transfer interleaved



What the transactions do: Automatically detecting this conflict from happening and automatically fixing it

→ Always report the correct sum





Transactions

A transaction is applied in full, or (in case of conflict) not applied at all

Transactions can be safely retried

→ Transactions must not have side-effects outside of what is retryable (side effect actions such as printing)





Side-effects

Transactions should only contain:

- STM actions

- Reversible/non-side-effecting operations

Only once a transaction is committed can you rely on anything that happened inside the transaction block



Dealing with inconsistencies

STM detects inconsistencies and automatically retries



It keeps track of everything you read up until the point where the transaction was and if it detects someone was writing to x while I wasn't looking, then rollback





Retry Operation

When a transaction calls retry (e.g. condition does not hold), it would be wasteful to immediately check again

Instead, STM waits until a field the transaction read is changed

It automatically detects which fields were read





Composing Transactions

With orAtomic multiple actions can be composed

atomic {A}  orAtomic{B}

If A retries, then attempt B

If B also retries, wait for variables read by A or B to change

Once a change is detected, rerun the corresponding action





How to implement?

Usually optimistic approach (lock-free)

Assume it will go well, check at end if that was the correct assumption

E.g.

- keep a global version

- keep version for each variable (last time read/written)

- when reading/writing, if version of variable is greater than version at the start of transaction → abort





Advantages/Disadvantages

Advantages:

- No deadlocks

- No race conditions

- Simple to use (isolation → composable)

- Easy to understand code



Disadvantages:

- More overhead when not using a lot of threads





Future & Promises

Abstraction for asynchronous computation

Proxy (대리) for something that is not yet done/known

→ Result will appear in future eventually

Usually used in combination with a ThreadPool

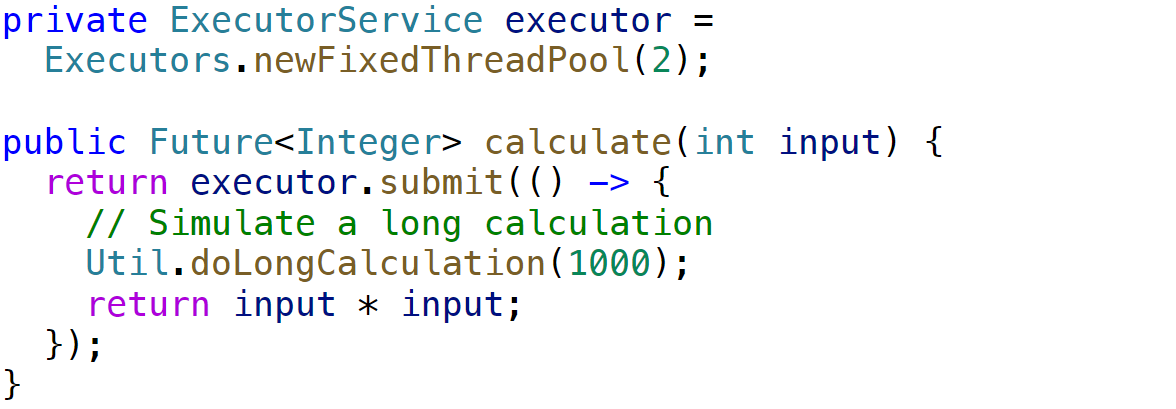

class FutureExample {
  private static ExecutorService executor = Executors.newFixedThreadPool(2);

  public static Future<Integer> calculate(int input) {
    System.out.println("Starting calculation");
    return executor.submit(() -> {
      // Simulate a long calculation
      Util.doLongCalculation(10000);
      return input * input;
    });
  }

  public static void main(String[] args) throws Exception {
    Future<Integer> f = calculate(5);
    System.out.println("Submission of task is done, but we are still executing");
    System.out.println("Result: " + f.); // will block waiting for the result
  }
}



Starting calculation

Is the task already done? false

Submission of task is done, but we are still executing

In theory we could do something else at this point





Async/Await

Language support for promises/futures → Javascript, C#, Rust

Shared Thread Pool (or even just a single executor)

Async functions wrap their results in promises/futures

Awaiting a promise/future actually gets the result



async function f2() {
  var a = await sleep(5000);
  return a;
}

// console.log(f2());
f2().then(console.log);



// TODO Show in browser with proper fetch support and awaiting at top level

const address = fetch("https://jsonplaceholder.typicode.com/users/1")
  .then((response) => response.json())
  .then((user) => {
    return user.address;
  });

address.then(console.log);
console.log("Main thread exits");


// const printAddress = () => {
//   address.then((a) => {
//     console.log(a);
//   });
// };

// printAddress();
