Lecture 9: Cryptography 2

목차



Block Cipher

A block cipher is a symmetric encryption scheme for messages (blocks) of a given fixed length

- The length of the block is independent from the length of the key

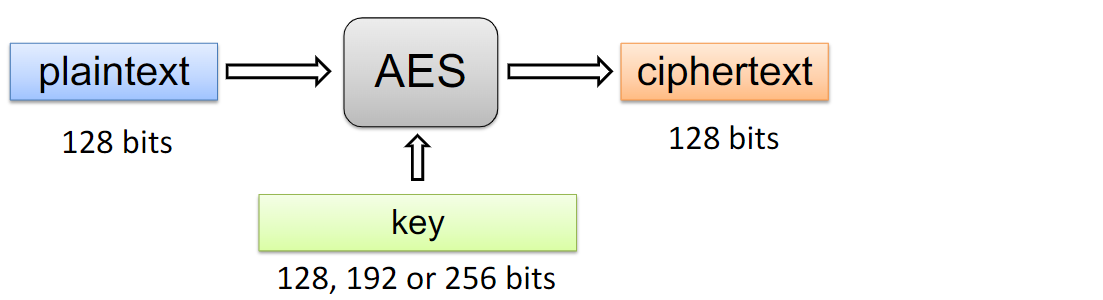

AES is a block cipher that operates on blocks of 128 bits (16 bytes0

- AES supports keys of length 128, 192, and 256 bits





ECB Mode

When plaintext is longer than block size, b

- Partition plaintext P into sequence of m blocks P[0], ... , P[m - 1], where n/b <= m < b/n + 1

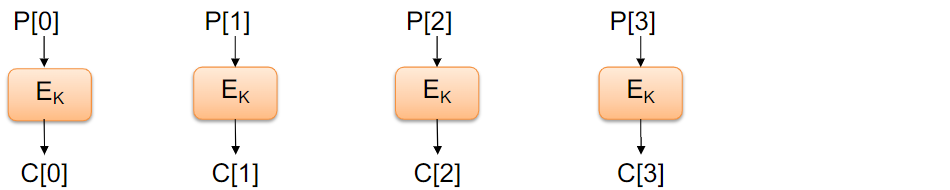

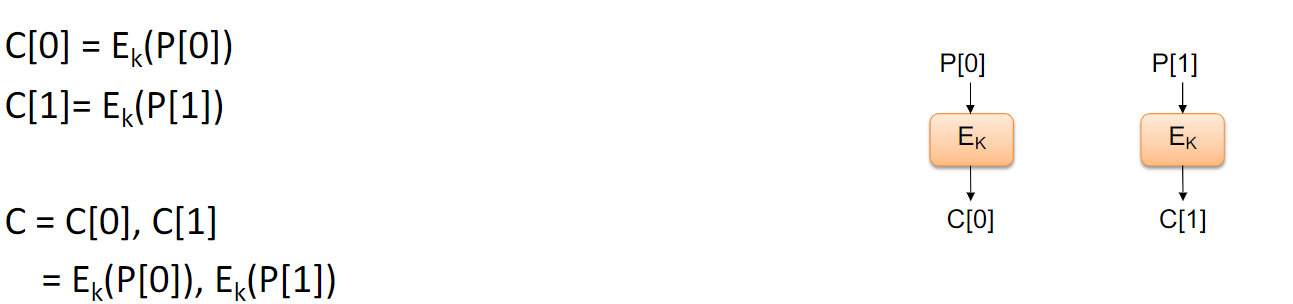

Electronic Code Book (ECB) Mode

- Assume n is multiple of b

- Block P[i] encrypted into ciphertext book C[i] = E



Properties:

- Documents and images are not suitable for ECB (Documents and images have patterns that can be exploited)

- ECB works well with random string

- Encryption can be done in parallel

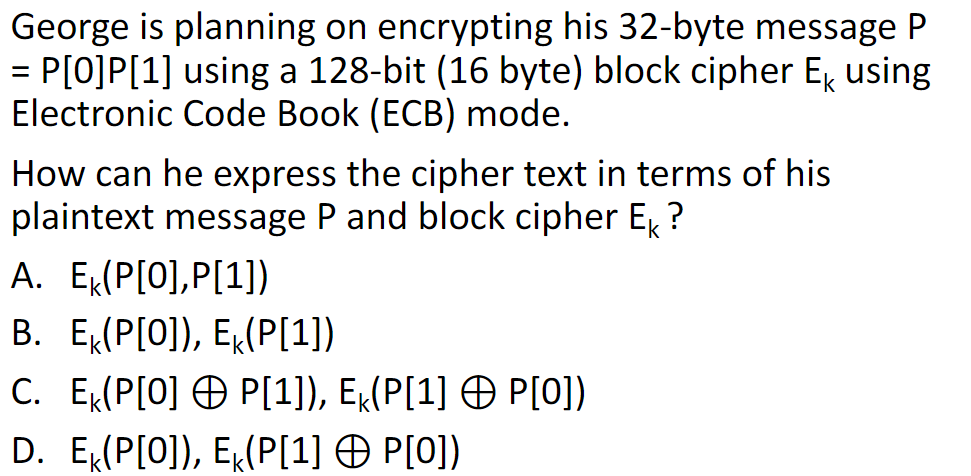

Question



답: B







CBC Mode

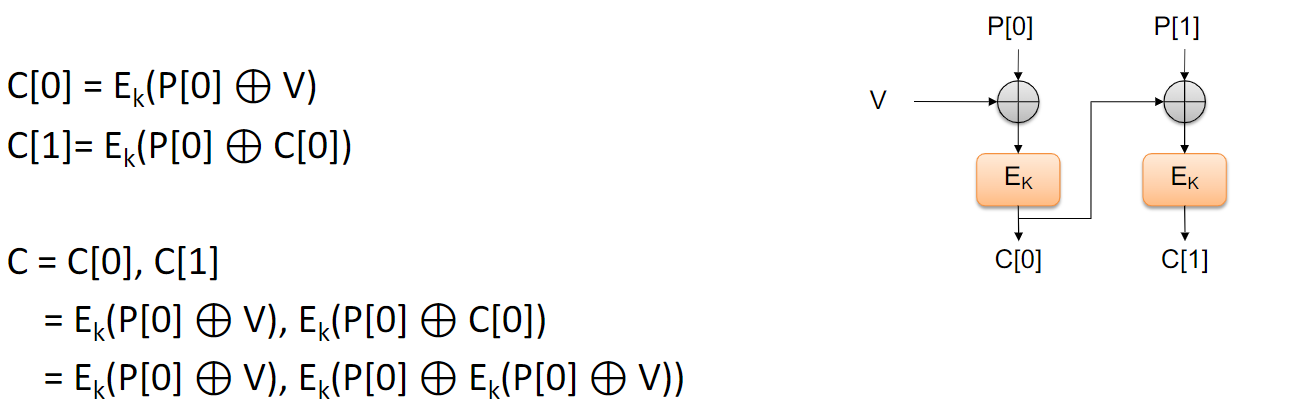

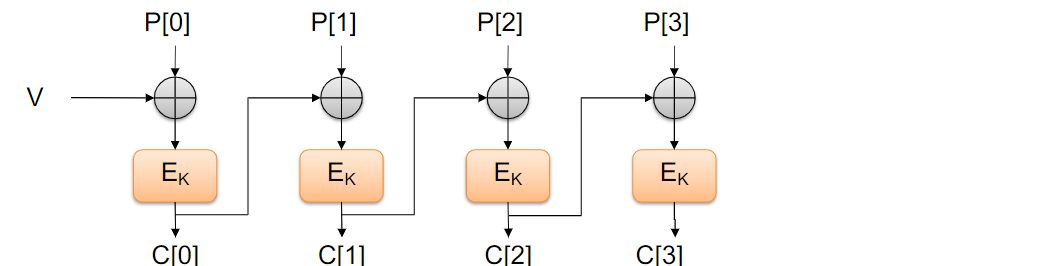

Cipher Block Chaining (CBC) Mode

- Previous ciphertext block combined with current plaintext block C[i] = E_k(C[i - 1] ⊕ P[i])

- C [-1] = V is a random block (initialization vector) sent encrypted during setup

Each ciphertext depends on the previous one





Properties:

- Works well with any input plaintext (documents, images, ...)

- Requires the reliable transmission of all blocks

→ Not suitable for applications that allow packet losses E.g. audio and video streaming

- Can't parallelize like ECB Mode

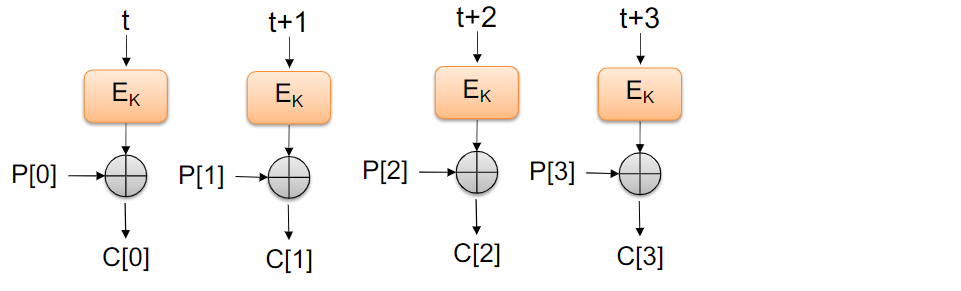

Counter Mode

To not reveal patterns and work in parallel:

→ Counter Mode:

- Counter t

Encryption: C[i] = E_k (t + i) ⊕ P [i]

No need to implement decryption (저 공식에서 쓸 수 있는듯)







Padding

Block ciphers require the length n of the plaintext to be a multiple of the block size b

How to pad unambiguously the last block?



Pad is a sequence of identical bytes, each indicating the length (in bytes) of the padding



Example for b = 128 (16 bytes)

- Plaintext: "Bernardo" (7 bytes)

- Padded plaintext: "Bernardo999999999" (16 bytes)



We need to always pad the last block, which may consist only of padding

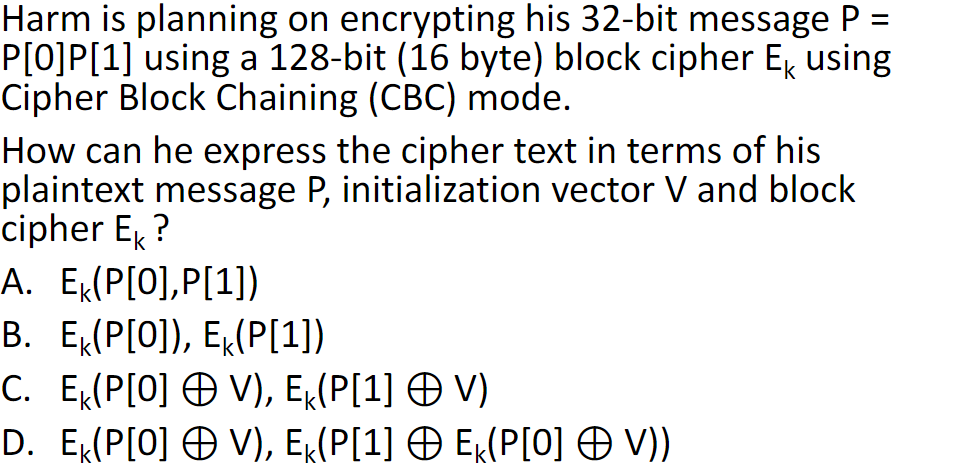

Question



답: D







Stream Cipher

One-Time Pad

Key: Sequence of random bits, same length as plaintext

Encryption: C = K ⊕ P

Decryption: P = K ⊕ C



Advantages

- Each bit of the ciphertext is random

- Fully secure if key used only once



All messages are equally possible given a ciphertext



Disadvantages

- Key as large as plaintext (difficult to generate)

- Key cannot be reused

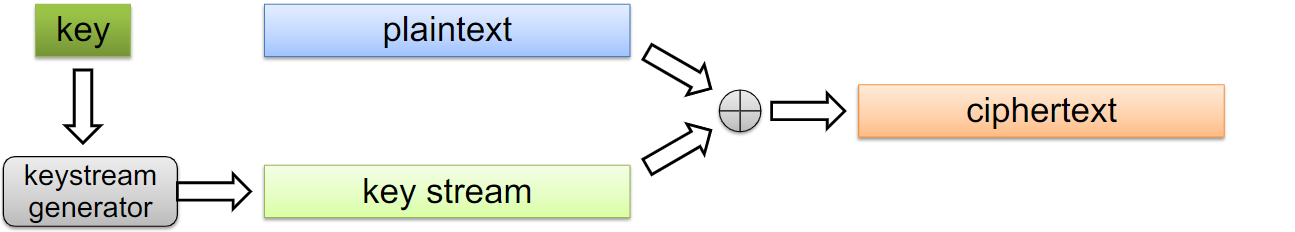

Stream Cipher

Key Stream:

- Pseudo-random bit sequence generated from a secret key K

- Generated on-demand, one bit (or block) at the time



Stream cipher: XOR the plaintext with the key stream C[i] = Sk[i] ⊕ P[i]

This is symmetric key encryption



Advantages:

- Fixed-length secret key

- Plaintext can have arbitrary length (e.g. media stream)

- Incremental encryption and decryption

- Works for packets sent over an unreliable channel



Disadvantages:

- Key stream cannot be reused





Key Stream Generation

Block cipher in counter mode

- Use a block cipher Ek with block size b  e.g. AES (block size is 128)

- The secret key is a pair (K, t), where K is a key and t is a counter with b bits

- The key stream is the concatenation of ciphertexts: Ek (t), Ek (t + 1), Ek (t + 2)



Advantages

- Simplicity

- Speed



Disadvantages

- Very long key streams can be distinguished from random







Initialization Vector

Goal: Avoid sharing a new secret key for each stream encryption

Solution:

- Use a two-part key (U, V)

- Part U is fixed

- Part V is transmitted together with the ciphertext

- V is called initialization vector



Setup: Alex and Harm share secret U

Encryption:

- Alex picks V and creates key K = (U, V)

- Alex creates stream ciphertext C and sends (V, C)



Decryption:

- Harm reconstructs key K = (U, V)

- Harm decrypts the message







Attacks on Stream Ciphers

Repetition attack

- Stream reuse yields XOR of plaintexts

- Cryptanalysis can recover the original plaintexts



Replacement attack

- P = A B C, where the attacker knows B

- Enc (P) = K L M

- By computing B ⊕ L, part of the key stream is revealed.

- The attacker can derive the ciphertext of Q = A D C

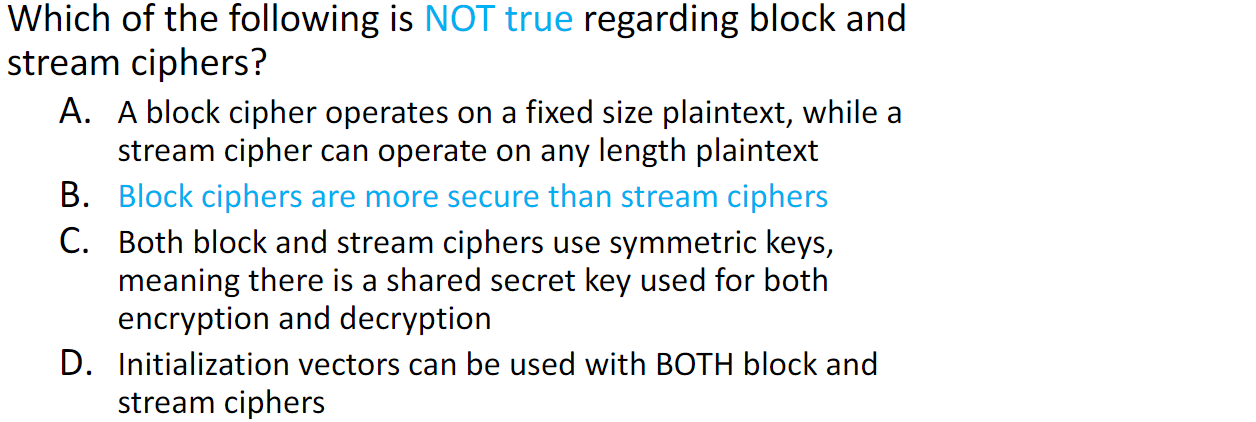

Question

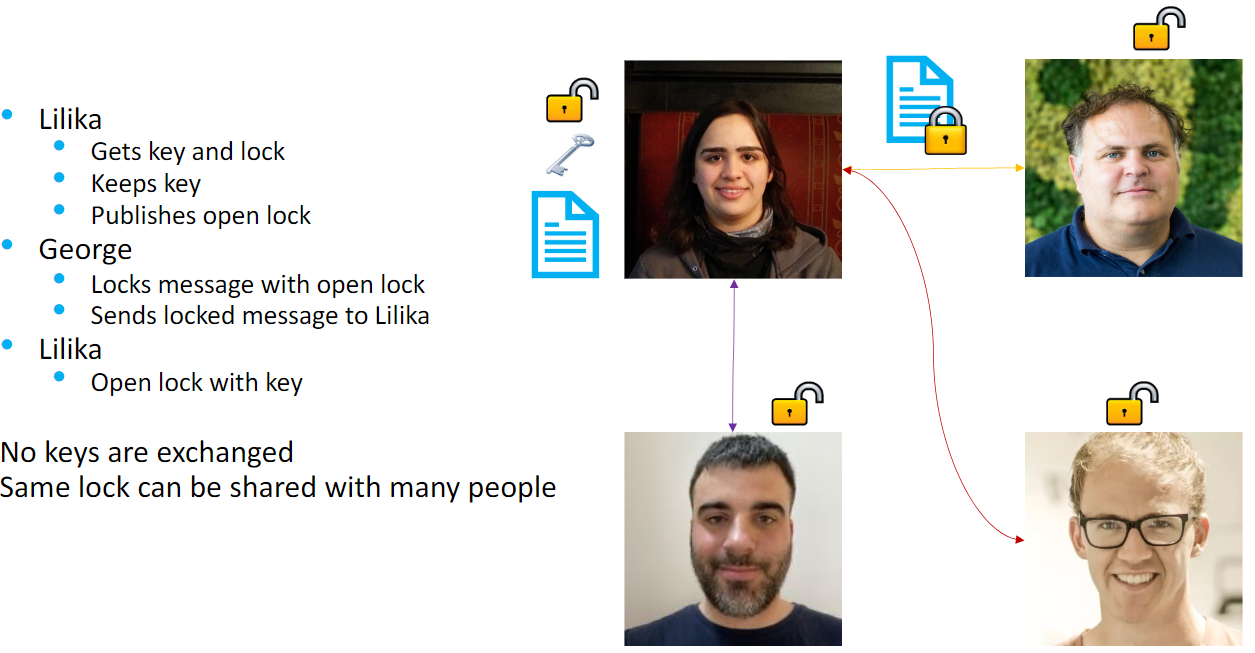

Public Key Cryptography

Key pair:

- Public key: shared with everyone

- Secret key: kept secret, hard to derive from the public key

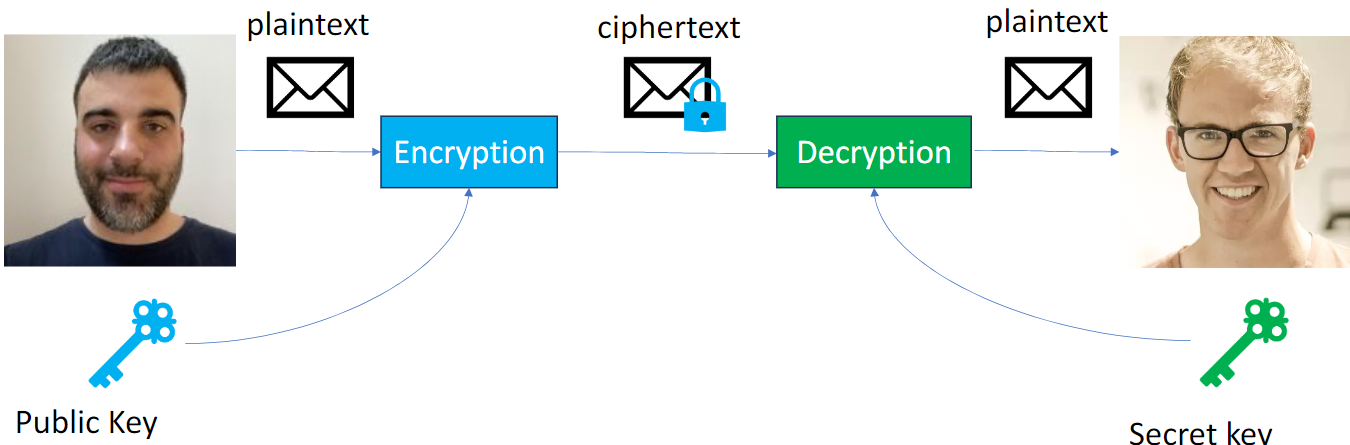

Protocol:

- Sender encrypts using recipient's public key

- Recipient decrypts using his secret key











Public-Key Encryption in Formulas

Notation:

- PK: Public key of recipient

- SK: Secret key of recipient

- (PK, SK) = KeyGen()

- M: plaintext

- C: ciphertext



Encryption:

- C = Enc_PK (M)

- The sender encrypts the plaintext M with the public key of the recipient



Decryption:

- M = Dec_SK (C)

- The recipient decrypts the ciphertext with their private key



Properties:

- Anyone can encrypt a message since the recipient openly shares the public key

- Only the recipient can decrypt the message since the private key is kept secret

- It should be infeasible to derive the secret key from the public key

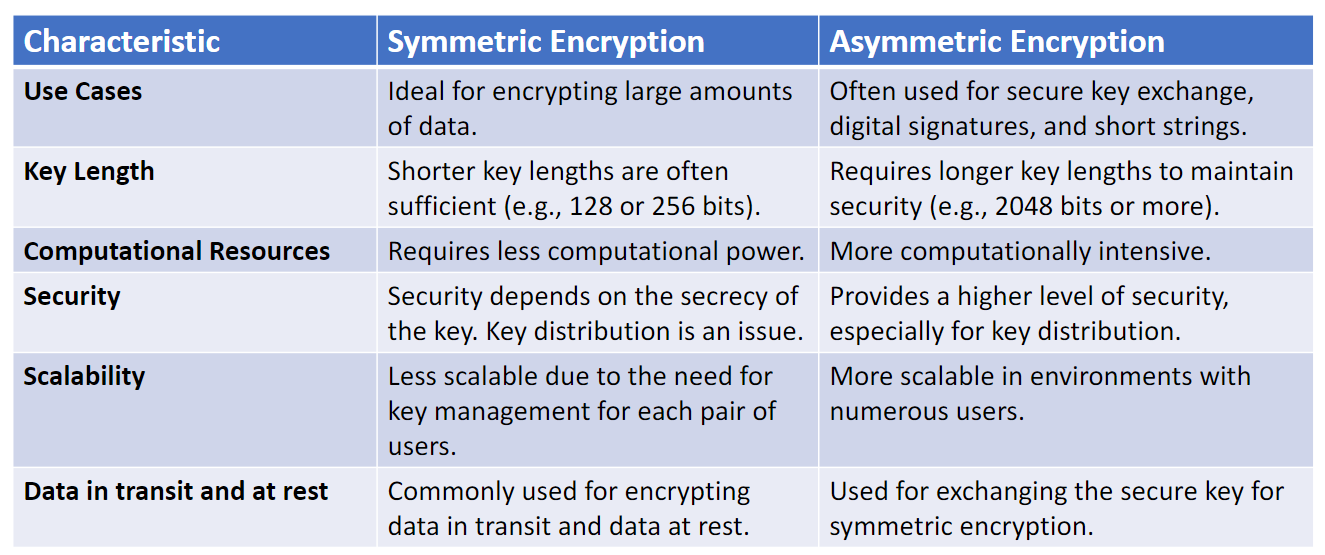

Advantages:

- A single public-secret key pair allows receiving confidential messages from multiple parties



Disadvantages:

- Conceptually complex

- Slower performance than symmetric cryptography







RSA

Most widely used public key cryptosystem today

Depends on factoring being hard

2048-bit (or longer) keys recommended (126 bits in AES)

Much slower than AES (have to deal with exponentiation)

Typically used to encrypt an AES symmetric key









Threat Models

(Weaker) Adversary Models

Ciphertext-only:

- Adversary sees all ciphertexts, but has no / vague information about the underlying plaintext



Known plaintext:

- Adversary also knows part of / format of plaintext messages

How could this happen?

- All of your internet requests start with the same header

- Sending a CSV in the same format every week

- You text "hi" to people when you first start texting them

Open design principle





(Stronger) Adversary Models

Chosen plaintext

- Adversary is able to encrypt plaintexts of their choosing and see the resulting ciphertexts

How can this happen?

- Harm sends Alex an email saying "Please securely forward this to George"

- Public key cryptography



Chosen ciphertext

- Adversary chooses ciphertexts and some info is revealed about the decryption





Formalization

How do we show that our schemes are secure against these different kinds of attacker models?

Goal: Cryptosystem should not leak any information about the plaintext M.

Idea: No adversary should be able to distinguish between two messages based on their encryption



We model security of encryption schemes as a game:

- Played between a challenger (with access to the encryption algorithm and the secret key) and an adversary

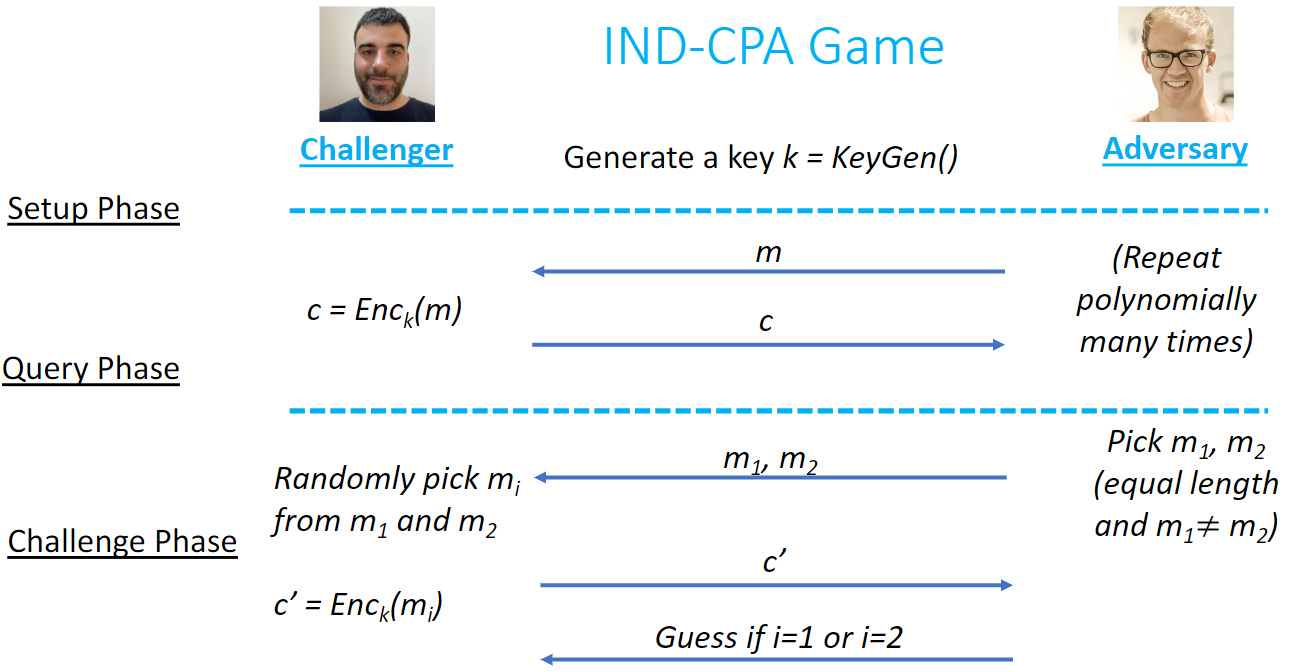

IND-CPA

Indistinguishability under Chosen Plaintext Attack

Adversary has polynomially-bounded access to an encryption oracle

→ Computationally-bounded

Adversary has polynomially-many (m, c) pairs for m's of their choosing





Query phase: Sends the message m and gets the ciphertext c

Challenge phase: Picks two messages,



If adversary's probability of winning the game is approximately ½, then our scheme is "IND-CPA secure"





Question

Is the Caesar cipher cryptosystem IND-CPA secure?



답: No

Query phase: Not necessary



Challenge phase: Send plaintexts "AB" and "AA"

- If output is in the form "XY" (where X =! Y), then output "AB"

- Otherwise, output must be in form "XX"; then output "AA"





Question

Is the one-time pad cryptosystem IND-CPA secure?



답: No



Query phase: Send messages m1, m2 to get c1, c2

Challenge phase: send plaintexts m1, m2; challenger returns c_i

- if c_i ⊕ c1 = 0, then output m1

- otherwise, it must be that ci ⊕ c2 = 0, so output m2





Question

Can a determnistic encryption scheme be IND-CPA secure?

답: No



Query phase: send message m1 to get c1

Challenge phase: send message m1 and some other m2; challenger returns c_i

- if ci = c1, then output m1

- otherwise, output m2





Question

Is the encryption function Enc_k (m) = 1 IND-CPA secure?



Yes, but it's not correct. We also care about correctness - i.e. that we can actually decrypt a given encryption

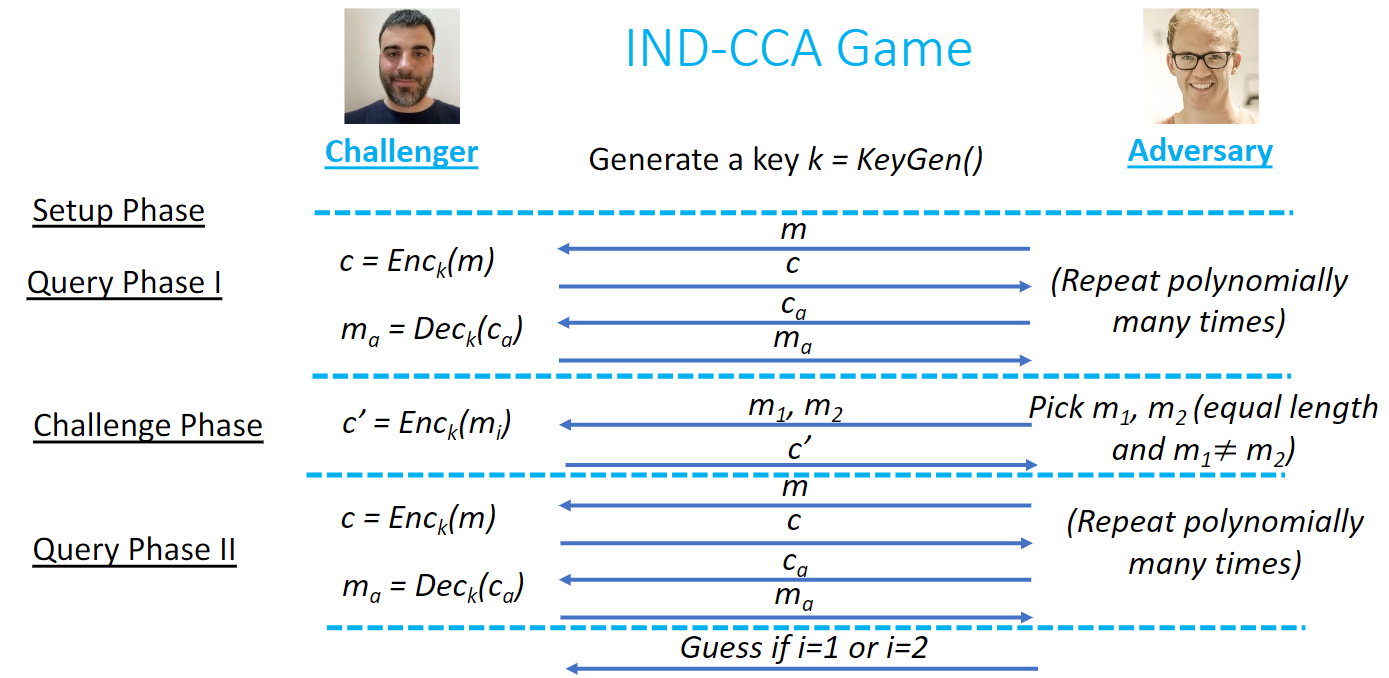

IND-CCA

Indistinguishability under Adaptive Chosen Ciphertext Attack

Adversary has polynomially-bounded access to an encryption oracle and a decryption oracle

Even after the challenge

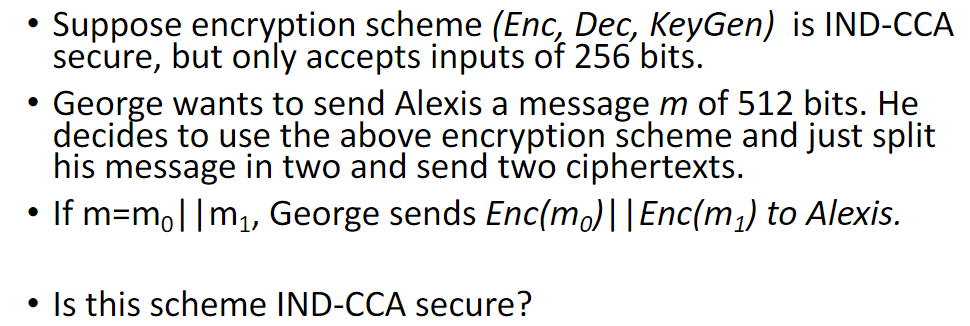

Question



답: No

Pick m0 = 00...00 and m1 = 11...11

c' = Enc(m_i)

Create a ciphertext consisting of the first half of c' and some other ciphertext for the second half

Send it to the decryption oracle

This returns the first half of m_i  → Adversary wins
